Blackmagic Design Decklink Mini Recorder

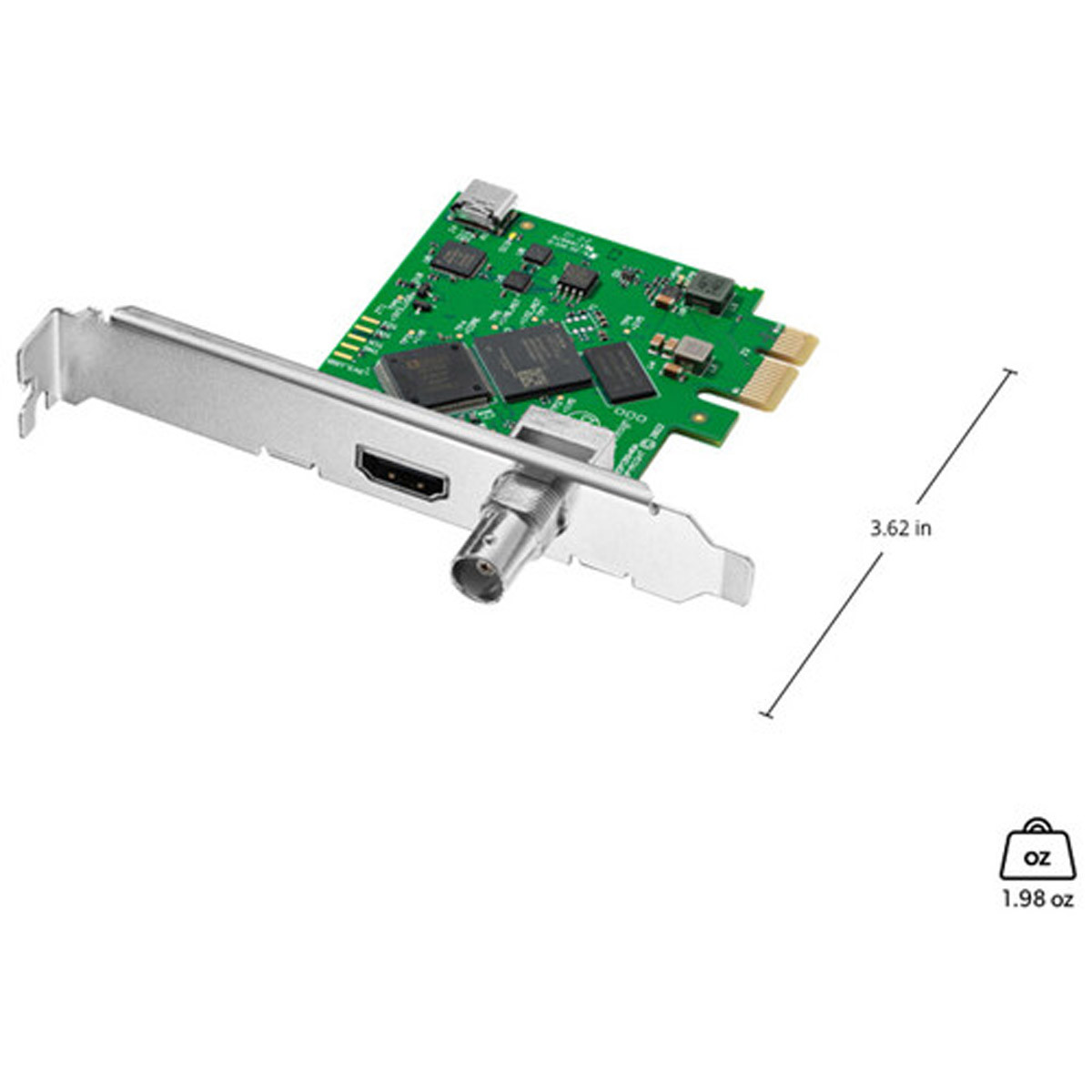

Blackmagic Design DeckLink Mini Recorder HD PCIe Playback Card, 3G-SDI
SKU: BMDLKMREC3G
Mfr. Part: BDLKMINIREC3G
Item Includes Blackmagic Design DeckLink Mini Recorder HD PCIe Playback Card - Low Profile Slot Bracket - Blackmagic Design 1 Year Limited Warranty
Description Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that's compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!
Features 1x 10-bit SD/HD switchable SDI Video Input PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots 16 channels embedded in SD/HD SDI Audio Input Firmware built into software driver. Loaded at system start or via updater software RP 188/SMPTE 12M-2 and closed captioning Television standard sample rate of 48 kHz and 24-bit 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards HDMI video connection is switchable between SD and HD
Specifications SDI Video Input 1x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G,3G SDI Audio Input 16 channels embedded inSD/HD HDMI Video Input 1x HDMI 2.0 type A connector HDMI Audio Input 8 channels embedded inSD/HD Computer Interface PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Expressslots. Connections Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR &DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit4:4:4. Supported Codecs Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on MacOS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver onLinux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updatersoftware. Physical Installation PCI Express 1lane generation 2, compatible with 1, 4, 8and 16 lane PCI Express slots on MacOS, Windows and Linux. MacOS systems require aMac Pro computer with PCI Express slots. Please check the Support pages to see the full systemrequirements. Software Software Applications Wirecast vMix OBS Other supported applications include Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just: in, Burst Video WebClip2Go & [REC]Marker, Zoom. Software Applications SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support SDI video connection is switchable between SD and HD. SDI Video Standards SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling: 4:2:2 and 4:4:4 HDMI Color Precision 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0 supports Deep Color. HDMI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support HDMI video connection is switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. HDMI Video Standards Hardware Frame Buffer v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). Hardware Frame Buffer Colorspace Conversion Hardware based real time. Processing Operating Systems Mac 11.1 Big Sur, Mac 12.0 Monterey or later. Windows 10, 64-bit, Windows 11. Linux Operating Systems Power Consumption 3 Watts Power Requirements Operating Temperature 5 Degree to 40 Degree C (32 Degree to 104 Degree F) Storage Temperature -20 Degree to 45 Degree C (-4 Degree to 113 Degree F) Relative Humidity 0% to 90% non-condensing Environmental Size 3.62" (92mm) Weight 1.98 oz (56.13g)
